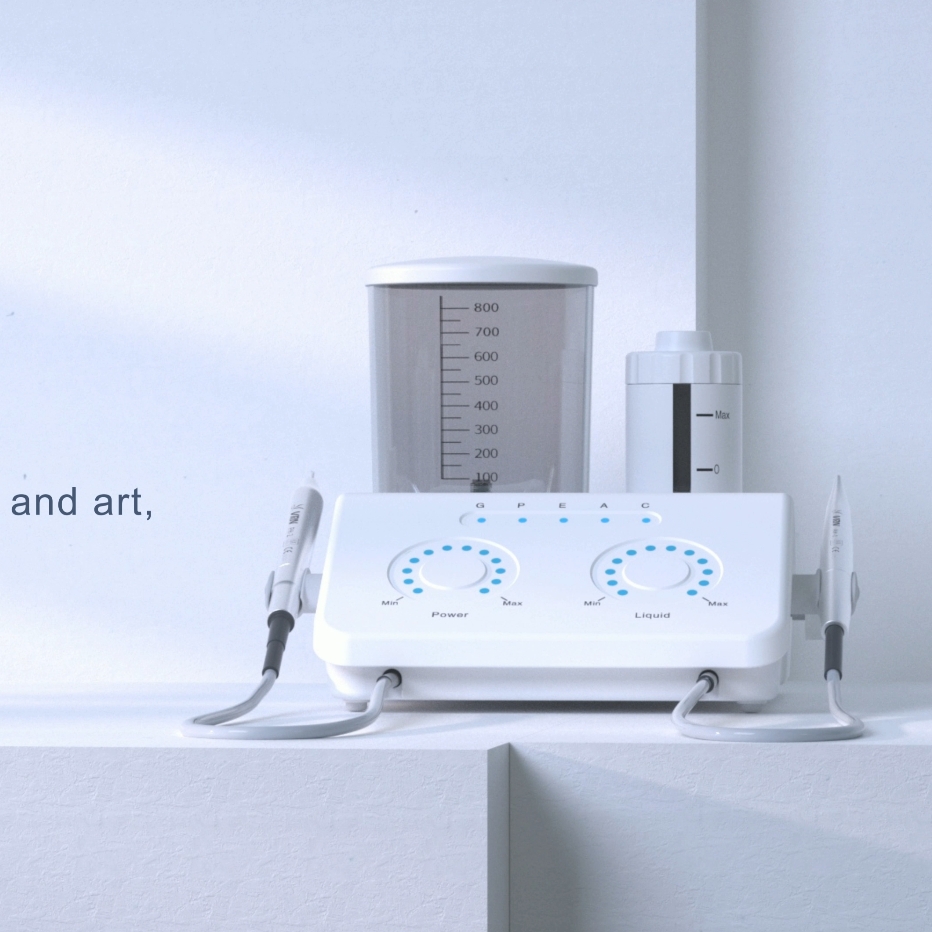

| Model | VRN DQ-40 |
| Control | Touch Panel |
| Handpiece | LED Detachable Pieze Handpiece PH-2 ×1， Sandblasting Handpiece AH-1 ×1 |
| Operating Mode | G/P/E/A/C |
| Water Tank | 800mL ×1 |
| External Water Hose | Unavailable |
| Power Input | 230V～,50Hz |
| Foot Pedal | Wireless Foot Pedal (IPX4) ×1 Wired Foot Pedal (IPX1) ×1 |
| Scaler Tip | E1 ×1, P12R ×1, IM1 ×1, P16 ×1, P11 ×1 P12 ×1, P12L ×1, G5 ×1, P1 ×1，G1 ×1 (10pcs in total) |
| Sterilization Box | 1 Sets |
| Powder Tank Components | 1 |
| Small Cart | Optional |
| Weight | 2.1kg |
| Input Voltage | 230VAC 50Hz |
| Input Power | 35VA |
| Vibration amplitude | Minimum: 1 um; deviation -50% Maximum: 100 μ m; deviation +50% |
| Output half-excursion force | Minimum: 0.1 N; deviation -50%. Maximum: 5 N; deviation +50% |
| Water pressure | 0.01MPa～0.5MPa (0.1bar～5bar) |
| Compressed air supply | 5bar～6bar（0.5MPa～0.6MPa） |
| Frequency | 25kHz～35KHz |
| Tips Hardness | 50HRC |
| Packing Size | 310mm*370mm*170mm |
| Storage Environment | Temperature: -20℃～55℃, Relative humidity: ≤ 90%, Atmospheric pressure: 70kPa～106kPa. |
| Working Environment | a.Ambient temperature: 5℃～40℃ b.Relative humidity: ≤80% c.Atmospheric pressure: 70kPa～106kPa d.Temperature of Cooling liquid: 5℃～25℃ |
| Life time | 10 year |
| handpiece can be sterilized | 134℃ and 0.22 MPa pressure |
